Seata源码—9.Seata XA模式的事务处理

大纲
1.Seata XA分布式事务案例及AT与XA的区别
2.Seata XA分布式事务案例的各模块运行流程

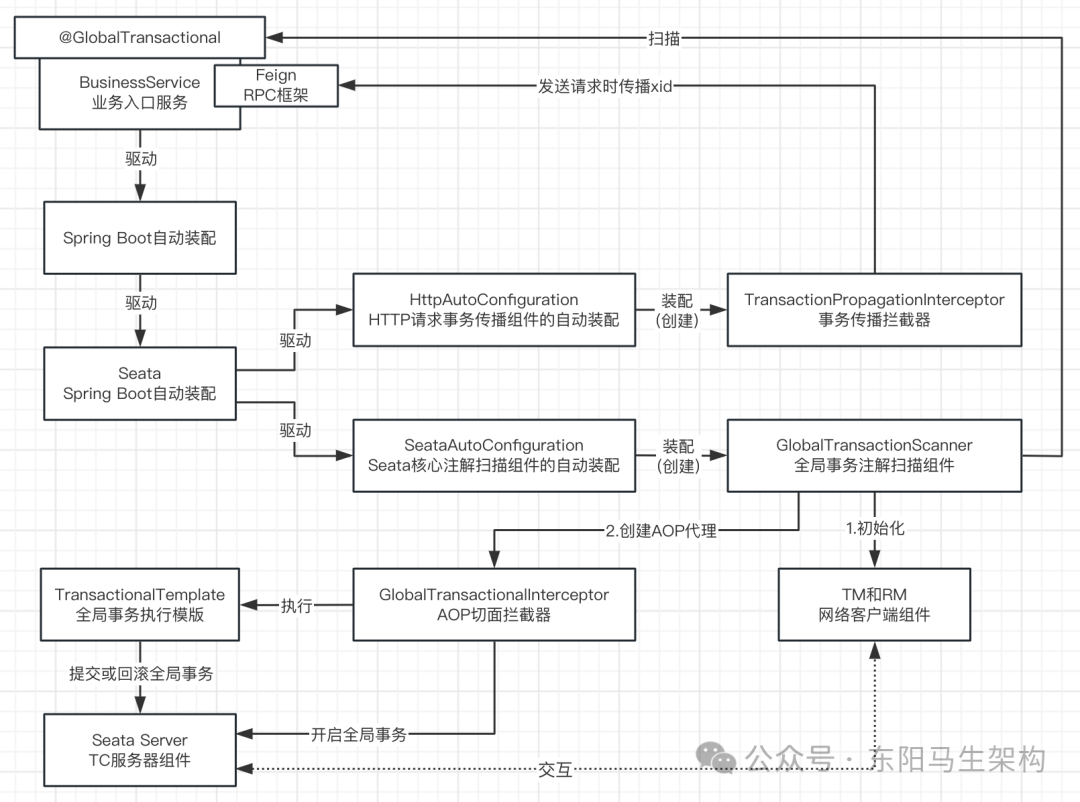

3.Seata使用Spring Boot自动装配简化复杂配置
4.全局事务注解扫描组件的自动装配
5.全局事务注解扫描器的核心变量与初始化
6.全局事务注解扫描器创建AOP代理
7.全局事务降级检查开启与提交事务的源码
8.Seata Server故障时全局事务拦截器的降级处理
9.基于HTTP请求头的全局事务传播的源码
10.XA数据源代理的初始化与XA连接代理的获取
11.XA分支事务注册与原始XA连接启动的源码
12.XA分布式事务两阶段提交流程的源码

1.Seata XA分布式事务案例及AT与XA的区别
(1)seata-samples项目的seata-xa模块简介
(2)启动Seata XA分布式事务案例的步骤
(3)Seata XA模式与AT模式对比

(1)seata-samples项目的seata-xa模块简介
seata-samples项目下的seata-xa模块，便基于Seata XA模式，实现了分布式事务的提交和回滚。

该seata-xa模块是一个Spring Boot项目：
一.使用了Feign来实现远程调用
二.使用了Spring JDBC来实现访问MySQL数据库
三.使用了Seata XA来实现分布式事务

(2)启动Seata XA分布式事务案例的步骤
一.执行案例所需的SQL语句：sql/all_in_one.sql

1. DROP TABLE IF EXISTS `stock_tbl`;
2. CREATE TABLE `stock_tbl` (
3.     `id`             int(11) NOT NULL AUTO_INCREMENT,
4.     `commodity_code` varchar(255) DEFAULT NULL,
5.     `count`          int(11) DEFAULT 0,
6.     PRIMARY KEY (`id`),
7.     UNIQUE KEY (`commodity_code`)
8. ) ENGINE=InnoDB DEFAULT CHARSET=utf8;
10. DROP TABLE IF EXISTS `order_tbl`;
11. CREATE TABLE `order_tbl` (
12.     `id`             int(11) NOT NULL AUTO_INCREMENT,
13.     `user_id`        varchar(255) DEFAULT NULL,
14.     `commodity_code` varchar(255) DEFAULT NULL,
15.     `count`          int(11) DEFAULT 0,
16.     `money`          int(11) DEFAULT 0,
17.     PRIMARY KEY (`id`)
18. ) ENGINE=InnoDB DEFAULT CHARSET=utf8;
20. DROP TABLE IF EXISTS `account_tbl`;
21. CREATE TABLE `account_tbl` (
22.     `id`      int(11) NOT NULL AUTO_INCREMENT,
23.     `user_id` varchar(255) DEFAULT NULL,
24.     `money`   int(11) DEFAULT 0,
25.     PRIMARY KEY (`id`)
26. ) ENGINE=InnoDB DEFAULT CHARSET=utf8;

复制代码

二.下载Seata Sever压缩包

1. 访问：https://github.com/seata/seata/releases

复制代码

三.解压Seata Sever的压缩包并启动Seata Server

1. $ unzip seata-server-xxx.zip
2. $ cd distribution
3. $ sh ./bin/seata-server.sh 8091 file

复制代码

四.依次启动AccountXA、OrderXA、StockXA、BusinessXA服务

五.测试

1. # 具体调用参数请结合BusinessController的代码
2. $ curl http://127.0.0.1:8084/purchase

复制代码

六.说明
数据初始化逻辑参考BusinessService.initData()方法。基于初始化数据和默认的调用逻辑，purchase将被成功调用3次。每次账户余额扣减3000，由最初的10000减少到1000。第4次调用，因为账户余额不足，purchase调用将失败。最后相应的库存、订单、账户都会回滚。

(3)Seata XA模式与AT模式对比
只要切换数据源代理类型，上述案例即可在XA模式和AT模式之间进行切换。

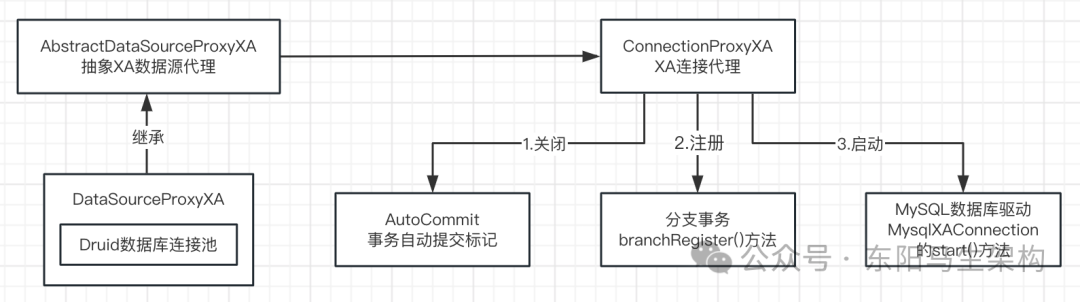

一.XA模式使用的数据源代理类型是DataSourceProxyXA

1. public class DataSourceProxy {
2.     @Bean("dataSourceProxy")
3.     public DataSource dataSource(DruidDataSource druidDataSource) {
4.         //DataSourceProxyXA for XA mode
5.         return new DataSourceProxyXA(druidDataSource);
6.     }
7. }

复制代码

二.AT模式使用的数据源代理类型是DataSourceProxy

1. public class DataSourceProxy {
2.     @Bean("dataSourceProxy")
3.     public DataSource dataSource(DruidDataSource druidDataSource) {
4.         return new DataSourceProxy(druidDataSource);
5.     }
6. }

复制代码

AT模式需要在数据库中建立undo_log表
XA模式不需要在数据库中建立undo_log表

1. CREATE TABLE `undo_log` (
2.     `id` bigint(20) NOT NULL AUTO_INCREMENT,
3.     `branch_id` bigint(20) NOT NULL,
4.     `xid` varchar(100) NOT NULL,
5.     `context` varchar(128) NOT NULL,
6.     `rollback_info` longblob NOT NULL,
7.     `log_status` int(11) NOT NULL,
8.     `log_created` datetime NOT NULL,
9.     `log_modified` datetime NOT NULL,
10.     PRIMARY KEY (`id`),
11.     UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
12. ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

复制代码


2.Seata XA分布式事务案例的各模块运行流程
(1)account-xa模块实现的账户服务的运行流程
(2)order-xa模块实现的订单服务的运行流程
(3)stock-xa模块实现的库存服务的运行流程
(4)business-xa模块实现的全局事务入口服务的运行流程

(1)account-xa模块实现的账户服务的运行流程

如下是account-xa模块的核心代码：

1. @EnableTransactionManagement
2. @SpringBootApplication
3. public class AccountXAApplication {
4.     public static void main(String[] args) {
5.         //监听8083端口
6.         SpringApplication.run(AccountXAApplication.class, args);
7.     }
8. }
10. @Configuration
11. public class AccountXADataSourceConfiguration {
12.     @Bean
13.     @ConfigurationProperties(prefix = "spring.datasource")
14.     public DruidDataSource druidDataSource() {
15.         return new DruidDataSource();
16.     }
17.
18.     @Bean("dataSourceProxy")
19.     public DataSource dataSource(DruidDataSource druidDataSource) {
20.         //DataSourceProxyXA for XA mode
21.         return new DataSourceProxyXA(druidDataSource);
22.     }
23.
24.     @Bean("jdbcTemplate")
25.     public JdbcTemplate jdbcTemplate(DataSource dataSourceProxy) {
26.         return new JdbcTemplate(dataSourceProxy);
27.     }
28.
29.     @Bean
30.     public PlatformTransactionManager txManager(DataSource dataSourceProxy) {
31.         return new DataSourceTransactionManager(dataSourceProxy);
32.     }
33. }
35. @RestController
36. public class AccountController {
37.     @Autowired
38.     private AccountService accountService;
39.
40.     @RequestMapping(value = "/reduce", method = RequestMethod.GET, produces = "application/json")
41.     public String reduce(String userId, int money) {
42.         try {
43.             accountService.reduce(userId, money);
44.         } catch (Exception exx) {
45.             exx.printStackTrace();
46.             return FAIL;
47.         }
48.         return SUCCESS;
49.     }
50. }
52. @Service
53. public class AccountService {
54.     public static final String SUCCESS = "SUCCESS";
55.     public static final String FAIL = "FAIL";
56.     private static final Logger LOGGER = LoggerFactory.getLogger(AccountService.class);
57.
58.     @Autowired
59.     private JdbcTemplate jdbcTemplate;
61.     @Transactional
62.     public void reduce(String userId, int money) {
63.         String xid = RootContext.getXID();
64.         LOGGER.info("reduce account balance in transaction: " + xid);
65.         jdbcTemplate.update("update account_tbl set money = money - ? where user_id = ?", new Object[]{money, userId});
66.         int balance = jdbcTemplate.queryForObject("select money from account_tbl where user_id = ?", new Object[]{userId}, Integer.class);
67.         LOGGER.info("balance after transaction: " + balance);
68.         if (balance < 0) {
69.             throw new RuntimeException("Not Enough Money ...");
70.         }
71.     }
72. }

复制代码

(2)order-xa模块实现的订单服务的运行流程

如下是order-xa模块的核心代码：

1. @SpringBootApplication
2. @EnableFeignClients
3. public class OrderXAApplication {
4.     public static void main(String[] args) {
5.         //监听8082端口
6.         SpringApplication.run(OrderXAApplication.class, args);
7.     }
8. }
10. @Configuration
11. public class OrderXADataSourceConfiguration {
12.     @Bean
13.     @ConfigurationProperties(prefix = "spring.datasource")
14.     public DruidDataSource druidDataSource() {
15.         return new DruidDataSource();
16.     }
17.
18.     @Bean("dataSourceProxy")
19.     public DataSource dataSource(DruidDataSource druidDataSource) {
20.         //DataSourceProxyXA for XA mode
21.         return new DataSourceProxyXA(druidDataSource);
22.     }
23.
24.     @Bean("jdbcTemplate")
25.     public JdbcTemplate jdbcTemplate(DataSource dataSourceProxy) {
26.         return new JdbcTemplate(dataSourceProxy);
27.     }
28. }
30. @RestController
31. public class OrderController {
32.     @Autowired
33.     private OrderService orderService;
35.     @RequestMapping(value = "/create", method = RequestMethod.GET, produces = "application/json")
36.     public String create(String userId, String commodityCode, int orderCount) {
37.         try {
38.             orderService.create(userId, commodityCode, orderCount);
39.         } catch (Exception exx) {
40.             exx.printStackTrace();
41.             return FAIL;
42.         }
43.         return SUCCESS;
44.     }
45. }
47. @Service
48. public class OrderService {
49.     public static final String SUCCESS = "SUCCESS";
50.     public static final String FAIL = "FAIL";
51.     private static final Logger LOGGER = LoggerFactory.getLogger(OrderService.class);
53.     @Autowired
54.     private AccountFeignClient accountFeignClient;
56.     @Autowired
57.     private JdbcTemplate jdbcTemplate;
59.     public void create(String userId, String commodityCode, Integer count) {
60.         String xid = RootContext.getXID();
61.         LOGGER.info("create order in transaction: " + xid);
62.         //定单总价 = 订购数量(count) * 商品单价(100)
63.         int orderMoney = count * 100;
64.         //生成订单
65.         jdbcTemplate.update("insert order_tbl(user_id,commodity_code,count,money) values(?,?,?,?)", new Object[]{userId, commodityCode, count, orderMoney});
66.         //调用账户余额扣减
67.         String result = accountFeignClient.reduce(userId, orderMoney);
68.         if (!SUCCESS.equals(result)) {
69.             throw new RuntimeException("Failed to call Account Service. ");
70.         }
71.     }
72. }
74. @FeignClient(name = "account-xa", url = "127.0.0.1:8083")
75. public interface AccountFeignClient {
76.     @GetMapping("/reduce")
77.     String reduce(@RequestParam("userId") String userId, @RequestParam("money") int money);
78. }

复制代码

(3)stock-xa模块实现的库存服务的运行流程

如下是stock-xa模块的核心代码：

1. @SpringBootApplication
2. public class StockXAApplication {
3.     public static void main(String[] args) {
4.         //监听8081端口
5.         SpringApplication.run(StockXAApplication.class, args);
6.     }
7. }
9. @Configuration
10. public class StockXADataSourceConfiguration {
11.     @Bean
12.     @ConfigurationProperties(prefix = "spring.datasource")
13.     public DruidDataSource druidDataSource() {
14.         return new DruidDataSource();
15.     }
16.
17.     @Bean("dataSourceProxy")
18.     public DataSource dataSource(DruidDataSource druidDataSource) {
19.         //DataSourceProxyXA for XA mode
20.         return new DataSourceProxyXA(druidDataSource);
21.     }
22.
23.     @Bean("jdbcTemplate")
24.     public JdbcTemplate jdbcTemplate(DataSource dataSourceProxy) {
25.         return new JdbcTemplate(dataSourceProxy);
26.     }
27. }
29. @RestController
30. public class StockController {
31.     @Autowired
32.     private StockService stockService;
34.     @RequestMapping(value = "/deduct", method = RequestMethod.GET, produces = "application/json")
35.     public String deduct(String commodityCode, int count) {
36.         try {
37.             stockService.deduct(commodityCode, count);
38.         } catch (Exception exx) {
39.             exx.printStackTrace();
40.             return FAIL;
41.         }
42.         return SUCCESS;
43.     }
44. }
46. @Service
47. public class StockService {
48.     public static final String SUCCESS = "SUCCESS";
49.     public static final String FAIL = "FAIL";
50.     private static final Logger LOGGER = LoggerFactory.getLogger(StockService.class);
51.
52.     @Autowired
53.     private JdbcTemplate jdbcTemplate;
55.     public void deduct(String commodityCode, int count) {
56.         String xid = RootContext.getXID();
57.         LOGGER.info("deduct stock balance in transaction: " + xid);
58.         jdbcTemplate.update("update stock_tbl set count = count - ? where commodity_code = ?", new Object[]{count, commodityCode});
59.     }
60. }

复制代码

(4)business-xa模块实现的全局事务入口服务的运行流程

如下是business-xa模块的核心代码：

1. @SpringBootApplication
2. @EnableFeignClients
3. public class BusinessXAApplication {
4.     public static void main(String[] args) {
5.         //监听8084端口
6.         SpringApplication.run(BusinessXAApplication.class, args);
7.     }
8. }
10. @Configuration
11. public class BusinessXADataSourceConfiguration {
12.     @Bean
13.     @ConfigurationProperties(prefix = "spring.datasource")
14.     public DruidDataSource dataSource() {
15.         return new DruidDataSource();
16.     }
17.
18.     @Bean("jdbcTemplate")
19.     public JdbcTemplate jdbcTemplate(DataSource dataSource) {
20.         return new JdbcTemplate(dataSource);
21.     }
22. }
24. @RestController
25. public class BusinessController {
26.     @Autowired
27.     private BusinessService businessService;
29.     @RequestMapping(value = "/purchase", method = RequestMethod.GET, produces = "application/json")
30.     public String purchase(Boolean rollback, Integer count) {
31.         int orderCount = 30;
32.         if (count != null) {
33.             orderCount = count;
34.         }
35.         try {
36.             businessService.purchase(TestDatas.USER_ID, TestDatas.COMMODITY_CODE, orderCount, rollback == null ? false : rollback.booleanValue());
37.         } catch (Exception exx) {
38.             return "Purchase Failed:" + exx.getMessage();
39.         }
40.         return SUCCESS;
41.     }
42. }
44. @Service
45. public class BusinessService {
46.     public static final String SUCCESS = "SUCCESS";
47.     public static final String FAIL = "FAIL";
48.     private static final Logger LOGGER = LoggerFactory.getLogger(BusinessService.class);
49.
50.     @Autowired
51.     private StockFeignClient stockFeignClient;
52.
53.     @Autowired
54.     private OrderFeignClient orderFeignClient;
55.
56.     @Autowired
57.     private JdbcTemplate jdbcTemplate;
59.     @GlobalTransactional
60.     public void purchase(String userId, String commodityCode, int orderCount, boolean rollback) {
61.         String xid = RootContext.getXID();
62.         LOGGER.info("New Transaction Begins: " + xid);
64.         String result = stockFeignClient.deduct(commodityCode, orderCount);
65.         if (!SUCCESS.equals(result)) {
66.             throw new RuntimeException("库存服务调用失败,事务回滚!");
67.         }
69.         result = orderFeignClient.create(userId, commodityCode, orderCount);
70.         if (!SUCCESS.equals(result)) {
71.             throw new RuntimeException("订单服务调用失败,事务回滚!");
72.         }
73.         if (rollback) {
74.             throw new RuntimeException("Force rollback ... ");
75.         }
76.     }
77.     ...
78. }
80. @FeignClient(name = "stock-xa", url = "127.0.0.1:8081")
81. public interface StockFeignClient {
82.     @GetMapping("/deduct")
83.     String deduct(@RequestParam("commodityCode") String commodityCode, @RequestParam("count") int count);
84. }
86. @FeignClient(name = "order-xa", url = "127.0.0.1:8082")
87. public interface OrderFeignClient {
88.     @GetMapping("/create")
89.     String create(@RequestParam("userId") String userId, @RequestParam("commodityCode") String commodityCode, @RequestParam("orderCount") int orderCount);
90. }

复制代码


3.Seata使用Spring Boot自动装配简化复杂配置
(1)seata-spring-boot-starter简介
(2)自动装配GlobalTransactionScanner的Bean

(1)seata-spring-boot-starter简介
seata-v1.5.0源码下的seata-spring-boot-starter模块，便使用了Spring Boot自动装配来简化seata-all的复杂配置。与dubbo-spring-boot-starter是Spring Boot整合Dubbo所需的依赖一样，seata-spring-boot-starter也是Spring Boot整合Seata所需的依赖。

seata-samples-1.5.0项目中的seata-spring-boot-starter-samples模块，整合了SpringBoot + Dubbo + Mybatis + Nacos +Seata来实现Dubbo的分布式事务管理。其中使用Nacos作为Dubbo和Seata的注册中心和配置中心，使用MySQL数据库和MyBatis来操作数据。

注意：seata-spring-boot-starter默认会开启数据源自动代理，用户若再手动配置DataSourceProxy将会导致异常。

(2)自动装配GlobalTransactionScanner的Bean
seata-samples-1.5.0项目的seata-xa模块与seata-samples-dubbo模块不同，后者是通过xml配置文件来装配GlobalTransactionScanner这个Bean的。

1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans xmlns="http://www.springframework.org/schema/beans"
3.        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
4.        xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
5.        xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd">
6.     ...
7.
8.     <bean >
9.         <constructor-arg value="dubbo-demo-account-service"/>
10.         <constructor-arg value="my_test_tx_group"/>
11.     </bean>
12. </beans>

复制代码

前者是通过seata-spring-boot-starter的SeataAutoConfiguration类，来实现自动装配GlobalTransactionScanner这个Bean的。

1. @ConditionalOnProperty(prefix = SEATA_PREFIX, name = "enabled", havingValue = "true", matchIfMissing = true)
2. public class SeataAutoConfiguration {
3.     private static final Logger LOGGER = LoggerFactory.getLogger(SeataAutoConfiguration.class);
5.     @Bean(BEAN_NAME_FAILURE_HANDLER)
6.     @ConditionalOnMissingBean(FailureHandler.class)
7.     public FailureHandler failureHandler() {
8.         return new DefaultFailureHandlerImpl();
9.     }
11.     @Bean
12.     @DependsOn({BEAN_NAME_SPRING_APPLICATION_CONTEXT_PROVIDER, BEAN_NAME_FAILURE_HANDLER})
13.     @ConditionalOnMissingBean(GlobalTransactionScanner.class)
14.     public GlobalTransactionScanner globalTransactionScanner(SeataProperties seataProperties, FailureHandler failureHandler) {
15.         if (LOGGER.isInfoEnabled()) {
16.             LOGGER.info("Automatically configure Seata");
17.         }
18.         //返回一个@GlobalTransaction全局事务注解的扫描组件
19.         return new GlobalTransactionScanner(seataProperties.getApplicationId(), seataProperties.getTxServiceGroup(), failureHandler);
20.     }
21. }

复制代码


4.全局事务注解扫描组件的自动装配
(1)Spring Boot的自动装配驱动Seata Spring Boot的自动装配
(2)SeataAutoConfiguration会自动装配GlobalTransactionScanner

(1)Spring Boot的自动装配驱动Seata Spring Boot的自动装配
resources/META-INF/spring.factories的配置文件如下，所以Spring Boot会自动装配上述这4个类。

1. # Auto Configure
2. org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
3. io.seata.spring.boot.autoconfigure.SeataPropertiesAutoConfiguration,\
4. io.seata.spring.boot.autoconfigure.SeataDataSourceAutoConfiguration,\
5. io.seata.spring.boot.autoconfigure.SeataAutoConfiguration,\
6. io.seata.spring.boot.autoconfigure.HttpAutoConfiguration

复制代码

(2)SeataAutoConfiguration会自动装配GlobalTransactionScanner
全局事务注解扫描器GlobalTransactionScanner会扫描@GlobalTransactional全局事务注解。

1. @ConditionalOnProperty(prefix = SEATA_PREFIX, name = "enabled", havingValue = "true", matchIfMissing = true)
2. public class SeataAutoConfiguration {
3.     private static final Logger LOGGER = LoggerFactory.getLogger(SeataAutoConfiguration.class);
5.     @Bean(BEAN_NAME_FAILURE_HANDLER)
6.     @ConditionalOnMissingBean(FailureHandler.class)
7.     public FailureHandler failureHandler() {
8.         return new DefaultFailureHandlerImpl();
9.     }
11.     @Bean
12.     @DependsOn({BEAN_NAME_SPRING_APPLICATION_CONTEXT_PROVIDER, BEAN_NAME_FAILURE_HANDLER})
13.     @ConditionalOnMissingBean(GlobalTransactionScanner.class)
14.     public GlobalTransactionScanner globalTransactionScanner(SeataProperties seataProperties, FailureHandler failureHandler) {
15.         if (LOGGER.isInfoEnabled()) {
16.             LOGGER.info("Automatically configure Seata");
17.         }
18.         //返回一个@GlobalTransaction全局事务注解的扫描组件
19.         return new GlobalTransactionScanner(seataProperties.getApplicationId(), seataProperties.getTxServiceGroup(), failureHandler);
20.     }
21. }

复制代码


5.全局事务注解扫描器的核心变量与初始化

1. //The type Global transaction scanner.
2. //AbstractAutoProxyCreator，自动代理创建组件，继承了它以后，Spring容器里的Bean都会传递给wrapIfNecessary()
3. //从而让GlobalTransactionScanner.wrapIfNecessary()可以扫描每个Bean的每个方法
4. //判断是否添加了@GlobalTransactional注解，如果扫描到添加了就对这个Bean创建一个AOP代理
5. public class GlobalTransactionScanner extends AbstractAutoProxyCreator
6.     implements ConfigurationChangeListener, InitializingBean, ApplicationContextAware, DisposableBean {
7.     ...
8.     //方法拦截器
9.     private MethodInterceptor interceptor;
10.     //全局事务注解拦截器
11.     private MethodInterceptor globalTransactionalInterceptor;
12.     //应用ID
13.     private final String applicationId;
14.     //全局事务服务分组
15.     private final String txServiceGroup;
16.     //事务模式
17.     private final int mode;
18.     //与阿里云有关的，一个是访问key，一个是密钥key
19.     private String accessKey;
20.     private String secretKey;
21.
22.     //是否禁用全局事务配置，默认是false
23.     private volatile boolean disableGlobalTransaction = ConfigurationFactory.getInstance().getBoolean(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION, DEFAULT_DISABLE_GLOBAL_TRANSACTION);
24.     //是否完成初始化
25.     private final AtomicBoolean initialized = new AtomicBoolean(false);
26.
27.     //失败处理钩子
28.     private final FailureHandler failureHandlerHook;
29.     //Spring容器上下文
30.     private ApplicationContext applicationContext;
32.     //Instantiates a new Global transaction scanner.
33.     public GlobalTransactionScanner(String txServiceGroup) {
34.         this(txServiceGroup, txServiceGroup, DEFAULT_MODE);
35.     }
37.     //Instantiates a new Global transaction scanner.
38.     public GlobalTransactionScanner(String txServiceGroup, int mode) {
39.         this(txServiceGroup, txServiceGroup, mode);
40.     }
42.     //Instantiates a new Global transaction scanner.
43.     public GlobalTransactionScanner(String applicationId, String txServiceGroup) {
44.         this(applicationId, txServiceGroup, DEFAULT_MODE);
45.     }
47.     //Instantiates a new Global transaction scanner.
48.     public GlobalTransactionScanner(String applicationId, String txServiceGroup, int mode) {
49.         this(applicationId, txServiceGroup, mode, null);
50.     }
52.     //Instantiates a new Global transaction scanner.
53.     public GlobalTransactionScanner(String applicationId, String txServiceGroup, FailureHandler failureHandlerHook) {
54.         this(applicationId, txServiceGroup, DEFAULT_MODE, failureHandlerHook);
55.     }
57.     //Instantiates a new Global transaction scanner.
58.     public GlobalTransactionScanner(String applicationId, String txServiceGroup, int mode, FailureHandler failureHandlerHook) {
59.         setOrder(ORDER_NUM);
60.         setProxyTargetClass(true);
61.         this.applicationId = applicationId;
62.         this.txServiceGroup = txServiceGroup;
63.         this.mode = mode;
64.         this.failureHandlerHook = failureHandlerHook;
65.     }
66.
67.     //Spring销毁时的回调接口
68.     @Override
69.     public void destroy() {
70.         ShutdownHook.getInstance().destroyAll();
71.     }
73.     //Spring初始化回调接口，负责这个扫描组件GlobalTransactionScanner的初始化
74.     @Override
75.     public void afterPropertiesSet() {
76.         if (disableGlobalTransaction) {
77.             if (LOGGER.isInfoEnabled()) {
78.                 LOGGER.info("Global transaction is disabled.");
79.             }
80.             ConfigurationCache.addConfigListener(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION, (ConfigurationChangeListener)this);
81.             return;
82.         }
83.         if (initialized.compareAndSet(false, true)) {
84.             initClient();
85.         }
86.     }
88.     //初始化Seata的两个网络通信客户端：TM网络客户端、RM网络客户端
89.     private void initClient() {
90.         if (LOGGER.isInfoEnabled()) {
91.             LOGGER.info("Initializing Global Transaction Clients ... ");
92.         }
93.         if (StringUtils.isNullOrEmpty(applicationId) || StringUtils.isNullOrEmpty(txServiceGroup)) {
94.             throw new IllegalArgumentException(String.format("applicationId: %s, txServiceGroup: %s", applicationId, txServiceGroup));
95.         }
96.         //init TM
97.         TMClient.init(applicationId, txServiceGroup, accessKey, secretKey);
98.         if (LOGGER.isInfoEnabled()) {
99.             LOGGER.info("Transaction Manager Client is initialized. applicationId[{}] txServiceGroup[{}]", applicationId, txServiceGroup);
100.         }
101.         //init RM
102.         RMClient.init(applicationId, txServiceGroup);
103.         if (LOGGER.isInfoEnabled()) {
104.             LOGGER.info("Resource Manager is initialized. applicationId[{}] txServiceGroup[{}]", applicationId, txServiceGroup);
105.         }
106.         if (LOGGER.isInfoEnabled()) {
107.             LOGGER.info("Global Transaction Clients are initialized. ");
108.         }
109.         registerSpringShutdownHook();
110.     }
111.     ...
112. }

复制代码


6.全局事务扫描器创建AOP代理

1. //The type Global transaction scanner.
2. //AbstractAutoProxyCreator，自动代理创建组件，继承了它以后，Spring容器里的Bean都会传递给wrapIfNecessary()
3. //从而让GlobalTransactionScanner.wrapIfNecessary()可以扫描每个Bean的每个方法
4. //判断是否添加了@GlobalTransactional注解，如果扫描到添加了就对这个Bean创建一个AOP代理
5. public class GlobalTransactionScanner extends AbstractAutoProxyCreator
6.     implements ConfigurationChangeListener, InitializingBean, ApplicationContextAware, DisposableBean {
7.     ...
8.     //The following will be scanned, and added corresponding interceptor:
9.     //由于继承自AbstractAutoProxyCreator抽象类，所以Spring所有的Bean都会传递给这个方法来判断是否有一些Seata的注解
10.     //如果有一些Seata的注解，那么就会针对这些注解创建对应的AOP代理
11.     @Override
12.     protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
13.         try {
14.             synchronized (PROXYED_SET) {
15.                 if (PROXYED_SET.contains(beanName)) {
16.                     return bean;
17.                 }
18.                 interceptor = null;
19.                 //check TCC proxy
20.                 if (TCCBeanParserUtils.isTccAutoProxy(bean, beanName, applicationContext)) {
21.                     //TCC interceptor, proxy bean of sofa:reference/dubbo:reference, and LocalTCC
22.                     interceptor = new TccActionInterceptor(TCCBeanParserUtils.getRemotingDesc(beanName));
23.                     ConfigurationCache.addConfigListener(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION, (ConfigurationChangeListener)interceptor);
24.                 } else {
25.                     Class<?> serviceInterface = SpringProxyUtils.findTargetClass(bean);
26.                     Class<?>[] interfacesIfJdk = SpringProxyUtils.findInterfaces(bean);
28.                     if (!existsAnnotation(new Class[]{serviceInterface}) && !existsAnnotation(interfacesIfJdk)) {
29.                         return bean;
30.                     }
31.                     if (globalTransactionalInterceptor == null) {
32.                         //构建一个GlobalTransactionalInterceptor，即全局事务注解的拦截器
33.                         globalTransactionalInterceptor = new GlobalTransactionalInterceptor(failureHandlerHook);
34.                         ConfigurationCache.addConfigListener(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION, (ConfigurationChangeListener)globalTransactionalInterceptor);
35.                     }
36.                     interceptor = globalTransactionalInterceptor;
37.                 }
39.                 LOGGER.info("Bean[{}] with name [{}] would use interceptor [{}]", bean.getClass().getName(), beanName, interceptor.getClass().getName());
40.                 if (!AopUtils.isAopProxy(bean)) {
41.                     //接下来会基于Spring的AbstractAutoProxyCreator创建针对目标Bean接口的动态代理
42.                     //这样后续调用到目标Bean的方法，就会调用到GlobalTransactionInterceptor拦截器
43.                     bean = super.wrapIfNecessary(bean, beanName, cacheKey);
44.                 } else {
45.                     AdvisedSupport advised = SpringProxyUtils.getAdvisedSupport(bean);
46.                     Advisor[] advisor = buildAdvisors(beanName, getAdvicesAndAdvisorsForBean(null, null, null));
47.                     for (Advisor avr : advisor) {
48.                         advised.addAdvisor(0, avr);
49.                     }
50.                 }
51.                 PROXYED_SET.add(beanName);
52.                 return bean;
53.             }
54.         } catch (Exception exx) {
55.             throw new RuntimeException(exx);
56.         }
57.     }
58.     ...
59. }

复制代码


7.全局事务降级检查开启与提交事务的源码
在GlobalTransactionalInterceptor的初始化方法中，如果发现需要启用全局事务降级检查机制，那么就会调用startDegradeCheck()方法启动降级检查定时调度线程。

该定时调度线程默认会每隔2秒运行一次，也就是每隔2秒会尝试到Seata Server开启一个全局事务。如果开启成功，则获取到对应的xid，并对该全局事务xid进行提交，并且发布一个降级检查成功的事件到事件总线中。如果开启失败或提交失败，则发布一个降级检查失败的事件到事件总线中。

1. //The type Global transactional interceptor.
2. //当调用添加了全局事务注解@GlobalTransactional的方法时，会被AOP拦截进入到这个拦截器里的invoke()方法
3. public class GlobalTransactionalInterceptor implements ConfigurationChangeListener, MethodInterceptor {
4.     private static final Logger LOGGER = LoggerFactory.getLogger(GlobalTransactionalInterceptor.class);
5.     private static final FailureHandler DEFAULT_FAIL_HANDLER = new DefaultFailureHandlerImpl();
7.     //全局事务执行模板
8.     private final TransactionalTemplate transactionalTemplate = new TransactionalTemplate();
9.     //全局锁模板
10.     private final GlobalLockTemplate globalLockTemplate = new GlobalLockTemplate();
11.     //失败处理器
12.     private final FailureHandler failureHandler;
13.     //是否禁用全局事务
14.     private volatile boolean disable;
16.     //降级检查周期
17.     //降级机制：如果Seata Server挂掉导致全局事务没法推进，那么就可以进行降级运行本地事务
18.     private static int degradeCheckPeriod;
19.     //是否启用降级检查机制
20.     private static volatile boolean degradeCheck;
21.     //降级检查允许次数
22.     private static int degradeCheckAllowTimes;
23.     //降级数量
24.     private static volatile Integer degradeNum = 0;
25.     //达标数量
26.     private static volatile Integer reachNum = 0;
27.     //降级检查的事件总线
28.     private static final EventBus EVENT_BUS = new GuavaEventBus("degradeCheckEventBus", true);
29.     //降级检查定时调度线程池
30.     private static ScheduledThreadPoolExecutor executor = new ScheduledThreadPoolExecutor(1, new NamedThreadFactory("degradeCheckWorker", 1, true));
32.     //region DEFAULT_GLOBAL_TRANSACTION_TIMEOUT
33.     //默认的全局事务超时时间
34.     private static int defaultGlobalTransactionTimeout = 0;
36.     //endregion
38.     //Instantiates a new Global transactional interceptor.
39.     public GlobalTransactionalInterceptor(FailureHandler failureHandler) {
40.         //失败处理器
41.         this.failureHandler = failureHandler == null ? DEFAULT_FAIL_HANDLER : failureHandler;
42.         //是否禁用全局事务，默认false
43.         this.disable = ConfigurationFactory.getInstance().getBoolean(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION, DEFAULT_DISABLE_GLOBAL_TRANSACTION);
45.         //是否启用全局事务降级检查机制，默认是false
46.         degradeCheck = ConfigurationFactory.getInstance().getBoolean(ConfigurationKeys.CLIENT_DEGRADE_CHECK, DEFAULT_TM_DEGRADE_CHECK);
47.         //如果启用全局事务降级检查机制
48.         if (degradeCheck) {
49.             //添加一个监听器
50.             ConfigurationCache.addConfigListener(ConfigurationKeys.CLIENT_DEGRADE_CHECK, this);
51.             //设置降级检查周期，默认是2s一次
52.             degradeCheckPeriod = ConfigurationFactory.getInstance().getInt(ConfigurationKeys.CLIENT_DEGRADE_CHECK_PERIOD, DEFAULT_TM_DEGRADE_CHECK_PERIOD);
53.             //设置降级检查允许次数，默认10次
54.             degradeCheckAllowTimes = ConfigurationFactory.getInstance().getInt(ConfigurationKeys.CLIENT_DEGRADE_CHECK_ALLOW_TIMES, DEFAULT_TM_DEGRADE_CHECK_ALLOW_TIMES);
55.             //将自己注册到降级检查事件总线里，作为事件订阅者
56.             EVENT_BUS.register(this);
57.             //如果降级检查周期大于0，而且降级检查允许次数大于0，此时启动降级检查线程
58.             if (degradeCheckPeriod > 0 && degradeCheckAllowTimes > 0) {
59.                 startDegradeCheck();
60.             }
61.         }
63.         //初始化默认全局事务超时时间
64.         this.initDefaultGlobalTransactionTimeout();
65.     }
67.     private void initDefaultGlobalTransactionTimeout() {
68.         if (GlobalTransactionalInterceptor.defaultGlobalTransactionTimeout <= 0) {
69.             int defaultGlobalTransactionTimeout;
70.             try {
71.                 defaultGlobalTransactionTimeout = ConfigurationFactory.getInstance().getInt(ConfigurationKeys.DEFAULT_GLOBAL_TRANSACTION_TIMEOUT, DEFAULT_GLOBAL_TRANSACTION_TIMEOUT);
72.             } catch (Exception e) {
73.                 LOGGER.error("Illegal global transaction timeout value: " + e.getMessage());
74.                 defaultGlobalTransactionTimeout = DEFAULT_GLOBAL_TRANSACTION_TIMEOUT;
75.             }
76.             if (defaultGlobalTransactionTimeout <= 0) {
77.                 LOGGER.warn("Global transaction timeout value '{}' is illegal, and has been reset to the default value '{}'", defaultGlobalTransactionTimeout, DEFAULT_GLOBAL_TRANSACTION_TIMEOUT);
78.                 defaultGlobalTransactionTimeout = DEFAULT_GLOBAL_TRANSACTION_TIMEOUT;
79.             }
80.             GlobalTransactionalInterceptor.defaultGlobalTransactionTimeout = defaultGlobalTransactionTimeout;
81.         }
82.     }
83.     ...
84.
85.     //auto upgrade service detection
86.     //启动降级检查定时调度线程，默认每隔2s运行一次
87.     private static void startDegradeCheck() {
88.         executor.scheduleAtFixedRate(() -> {
89.             if (degradeCheck) {
90.                 try {
91.                     //尝试通过应用id为null、事务服务分组为null、使用事务名称是degradeCheck、超时时间是60s的参数，去Seata Server开启一个全局事务
92.                     String xid = TransactionManagerHolder.get().begin(null, null, "degradeCheck", 60000);
93.                     //如果开启成功了，就获取到一个xid，直接对全局事务xid进行commit提交
94.                     TransactionManagerHolder.get().commit(xid);
95.                     //如果xid提交成功了，就发布一个降级检查事件到事件总线里，表明降级检查结果是true
96.                     EVENT_BUS.post(new DegradeCheckEvent(true));
97.                 } catch (Exception e) {
98.                     //如果开启一个全局事务失败，或者提交xid失败了，那么发布一个事件表示降级检查失败，结果是false
99.                     EVENT_BUS.post(new DegradeCheckEvent(false));
100.                 }
101.             }
102.         }, degradeCheckPeriod, degradeCheckPeriod, TimeUnit.MILLISECONDS);
103.     }
104.     ...
105. }

复制代码


9.基于HTTP请求头的全局事务传播的源码

1. public class GlobalTransactionalInterceptor implements ConfigurationChangeListener, MethodInterceptor {
2.     ...
3.     @Subscribe
4.     public static void onDegradeCheck(DegradeCheckEvent event) {
5.         if (event.isRequestSuccess()) {//如果检查成功，TC是有效的
6.             if (degradeNum >= degradeCheckAllowTimes) {
7.                 reachNum++;
8.                 if (reachNum >= degradeCheckAllowTimes) {
9.                     reachNum = 0;
10.                     degradeNum = 0;
11.                     if (LOGGER.isInfoEnabled()) {
12.                         LOGGER.info("the current global transaction has been restored");
13.                     }
14.                 }
15.             } else if (degradeNum != 0) {
16.                 degradeNum = 0;
17.             }
18.         } else {//如果检查失败，TC故障了，无法开启全局事务和提交了
19.             //如果降级次数小于允许降级检查次数(10次)
20.             if (degradeNum < degradeCheckAllowTimes) {
21.                 degradeNum++; //对降级次数+1
22.                 if (degradeNum >= degradeCheckAllowTimes) {
23.                     if (LOGGER.isWarnEnabled()) {
24.                         LOGGER.warn("the current global transaction has been automatically downgraded");
25.                     }
26.                 }
27.             } else if (reachNum != 0) {
28.                 reachNum = 0;
29.             }
30.         }
31.     }
32.
33.     //如果调用添加了@GlobalTransactional注解的方法，就会执行如下invoke()方法
34.     @Override
35.     public Object invoke(final MethodInvocation methodInvocation) throws Throwable {
36.         Class<?> targetClass = methodInvocation.getThis() != null ? AopUtils.getTargetClass(methodInvocation.getThis()) : null;
37.         Method specificMethod = ClassUtils.getMostSpecificMethod(methodInvocation.getMethod(), targetClass);
38.         if (specificMethod != null && !specificMethod.getDeclaringClass().equals(Object.class)) {
39.             final Method method = BridgeMethodResolver.findBridgedMethod(specificMethod);
40.             final GlobalTransactional globalTransactionalAnnotation = getAnnotation(method, targetClass, GlobalTransactional.class);
41.             final GlobalLock globalLockAnnotation = getAnnotation(method, targetClass, GlobalLock.class);
42.             //如果禁用了全局事务，或者开启了降级检查，同时降级次数大于了降级检查允许次数，那么localDisable就为true
43.             //localDisable为true则表示全局事务被禁用了，此时就不可以开启全局事务了
44.             boolean localDisable = disable || (degradeCheck && degradeNum >= degradeCheckAllowTimes);
45.             //如果全局事务没有禁用
46.             if (!localDisable) {
47.                 if (globalTransactionalAnnotation != null) {
48.                     //真正处理全局事务的入口
49.                     return handleGlobalTransaction(methodInvocation, globalTransactionalAnnotation);
50.                 } else if (globalLockAnnotation != null) {
51.                     return handleGlobalLock(methodInvocation, globalLockAnnotation);
52.                 }
53.             }
54.         }
55.         //直接运行目标方法
56.         return methodInvocation.proceed();
57.     }
58.     ...
59. }

复制代码


10.XA数据源代理的初始化与XA连接代理的获取

1. @Configuration
2. @ConditionalOnWebApplication
3. public class HttpAutoConfiguration extends WebMvcConfigurerAdapter {
4.     @Override
5.     public void addInterceptors(InterceptorRegistry registry) {
6.         registry.addInterceptor(new TransactionPropagationInterceptor());
7.     }
8.
9.     @Override
10.     public void extendHandlerExceptionResolvers(List<HandlerExceptionResolver> exceptionResolvers) {
11.         exceptionResolvers.add(new HttpHandlerExceptionResolver());
12.     }
13. }
15. //Springmvc Intercepter.
16. public class TransactionPropagationInterceptor extends HandlerInterceptorAdapter {
17.     private static final Logger LOGGER = LoggerFactory.getLogger(TransactionPropagationInterceptor.class);
18.
19.     @Override
20.     public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) {
21.         String xid = RootContext.getXID();
22.         //和Spring Cloud整合后，Feign在运行时也会执行Filter机制
23.         //此时就可以把xid作为一个请求头放到HTTP请求里去
24.         //接收方就会通过Spring MVC的拦截器，从请求头里提取xid，绑定到RootContext里
25.         String rpcXid = request.getHeader(RootContext.KEY_XID);
26.         if (LOGGER.isDebugEnabled()) {
27.             LOGGER.debug("xid in RootContext[{}] xid in HttpContext[{}]", xid, rpcXid);
28.         }
29.         if (xid == null && rpcXid != null) {
30.             RootContext.bind(rpcXid);
31.             if (LOGGER.isDebugEnabled()) {
32.                 LOGGER.debug("bind[{}] to RootContext", rpcXid);
33.             }
34.         }
35.         return true;
36.     }
37.
38.     @Override
39.     public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,
40.         ModelAndView modelAndView) {
41.         if (RootContext.inGlobalTransaction()) {
42.             XidResource.cleanXid(request.getHeader(RootContext.KEY_XID));
43.         }
44.     }
45. }

复制代码


11.XA分支事务注册与原始XA连接启动的源码

1. //DataSource proxy for XA mode.
2. public class DataSourceProxyXA extends AbstractDataSourceProxyXA {
3.     private static final Logger LOGGER = LoggerFactory.getLogger(DataSourceProxyXA.class);
4.
5.     public DataSourceProxyXA(DataSource dataSource) {
6.         this(dataSource, DEFAULT_RESOURCE_GROUP_ID);
7.     }
8.
9.     public DataSourceProxyXA(DataSource dataSource, String resourceGroupId) {
10.         if (dataSource instanceof SeataDataSourceProxy) {
11.             LOGGER.info("Unwrap the data source, because the type is: {}", dataSource.getClass().getName());
12.             dataSource = ((SeataDataSourceProxy) dataSource).getTargetDataSource();
13.         }
14.         this.dataSource = dataSource;
15.         this.branchType = BranchType.XA;
16.         JdbcUtils.initDataSourceResource(this, dataSource, resourceGroupId);
17.         //Set the default branch type to 'XA' in the RootContext.
18.         RootContext.setDefaultBranchType(this.getBranchType());
19.     }
20.
21.     @Override
22.     public Connection getConnection() throws SQLException {
23.         Connection connection = dataSource.getConnection();
24.         return getConnectionProxy(connection);
25.     }
26.
27.     @Override
28.     public Connection getConnection(String username, String password) throws SQLException {
29.         Connection connection = dataSource.getConnection(username, password);
30.         return getConnectionProxy(connection);
31.     }
32.
33.     protected Connection getConnectionProxy(Connection connection) throws SQLException {
34.         if (!RootContext.inGlobalTransaction()) {
35.             return connection;
36.         }
37.         return getConnectionProxyXA(connection);
38.     }
39.
40.     @Override
41.     protected Connection getConnectionProxyXA() throws SQLException {
42.         Connection connection = dataSource.getConnection();
43.         return getConnectionProxyXA(connection);
44.     }
45.
46.     private Connection getConnectionProxyXA(Connection connection) throws SQLException {
47.         //物理连接
48.         Connection physicalConn = connection.unwrap(Connection.class);
49.         XAConnection xaConnection = XAUtils.createXAConnection(physicalConn, this);
50.         ConnectionProxyXA connectionProxyXA = new ConnectionProxyXA(connection, xaConnection, this, RootContext.getXID());
51.         connectionProxyXA.init();
52.         return connectionProxyXA;
53.     }
54. }
56. //Abstract DataSource proxy for XA mode.
57. public abstract class AbstractDataSourceProxyXA extends BaseDataSourceResource<ConnectionProxyXA> {
58.     protected static final String DEFAULT_RESOURCE_GROUP_ID = "DEFAULT_XA";
60.     //Get a ConnectionProxyXA instance for finishing XA branch(XA commit/XA rollback)
61.     //@return ConnectionProxyXA instance
62.     public ConnectionProxyXA getConnectionForXAFinish(XAXid xaXid) throws SQLException {
63.         ConnectionProxyXA connectionProxyXA = lookup(xaXid.toString());
64.         if (connectionProxyXA != null) {
65.             return connectionProxyXA;
66.         }
67.         return (ConnectionProxyXA)getConnectionProxyXA();
68.     }
69.
70.     protected abstract Connection getConnectionProxyXA() throws SQLException;
72.     //Force close the physical connection kept for XA branch of given XAXid.
73.     //@param xaXid the given XAXid
74.     public void forceClosePhysicalConnection(XAXid xaXid) throws SQLException {
75.         ConnectionProxyXA connectionProxyXA = lookup(xaXid.toString());
76.         if (connectionProxyXA != null) {
77.             connectionProxyXA.close();
78.             Connection physicalConn = connectionProxyXA.getWrappedConnection();
79.             if (physicalConn instanceof PooledConnection) {
80.                 physicalConn = ((PooledConnection)physicalConn).getConnection();
81.             }
82.             //Force close the physical connection
83.             physicalConn.close();
84.         }
85.     }
86. }

复制代码


12.XA分布式事务两阶段提交流程的源码
Seata的XA是依赖MySQL的XA来实现的。

1. //Connection proxy for XA mode.
2. //XA模式的连接代理，通过它可以进行本地事务打开和提交/回滚，执行SQL语句，执行XA两阶段提交
3. public class ConnectionProxyXA extends AbstractConnectionProxyXA implements Holdable {
4.     private static final Logger LOGGER = LoggerFactory.getLogger(ConnectionProxyXA.class);
6.     //当前自动提交事务状态，默认true
7.     private boolean currentAutoCommitStatus = true;
8.     //XA分支事务xid
9.     private XAXid xaBranchXid;
10.     //XA事务是否活跃的标记，默认false
11.     private boolean xaActive = false;
12.     //是否保持住XA事务，默认false
13.     private boolean kept = false;
15.     //Constructor of Connection Proxy for XA mode.
16.     //@param originalConnection Normal Connection from the original DataSource.
17.     //@param xaConnection XA Connection based on physical connection of the normal Connection above.
18.     //@param resource The corresponding Resource(DataSource proxy) from which the connections was created.
19.     //@param xid Seata global transaction xid.
20.     public ConnectionProxyXA(Connection originalConnection, XAConnection xaConnection, BaseDataSourceResource resource, String xid) {
21.         super(originalConnection, xaConnection, resource, xid);
22.     }
23.
24.     public void init() {
25.         try {
26.             this.xaResource = xaConnection.getXAResource();
27.             this.currentAutoCommitStatus = this.originalConnection.getAutoCommit();
28.             if (!currentAutoCommitStatus) {
29.                 throw new IllegalStateException("Connection[autocommit=false] as default is NOT supported");
30.             }
31.         } catch (SQLException e) {
32.             throw new RuntimeException(e);
33.         }
34.     }
35.     ...
36.     //修改和调整自动提交事务状态时，会开始进行分支事务的注册
37.     @Override
38.     public void setAutoCommit(boolean autoCommit) throws SQLException {
39.         if (currentAutoCommitStatus == autoCommit) {
40.             return;
41.         }
42.         if (autoCommit) {
43.             //According to JDBC spec:
44.             //If this method is called during a transaction and the auto-commit mode is changed, the transaction is committed.
45.             if (xaActive) {
46.                 commit();
47.             }
48.         } else {
49.             if (xaActive) {
50.                 throw new SQLException("should NEVER happen: setAutoCommit from true to false while xa branch is active");
51.             }
52.             //Start a XA branch
53.             long branchId = 0L;
54.             try {
55.                 //1. register branch to TC then get the branchId
56.                 //分支事务发起注册，类型为XA，传入resourceId和xid
57.                 branchId = DefaultResourceManager.get().branchRegister(BranchType.XA, resource.getResourceId(), null, xid, null, null);
58.             } catch (TransactionException te) {
59.                 cleanXABranchContext();
60.                 throw new SQLException("failed to register xa branch " + xid + " since " + te.getCode() + ":" + te.getMessage(), te);
61.             }
62.             //2. build XA-Xid with xid and branchId
63.             this.xaBranchXid = XAXidBuilder.build(xid, branchId);
64.             try {
65.                 //3. XA Start
66.                 xaResource.start(this.xaBranchXid, XAResource.TMNOFLAGS);
67.             } catch (XAException e) {
68.                 cleanXABranchContext();
69.                 throw new SQLException("failed to start xa branch " + xid + " since " + e.getMessage(), e);
70.             }
71.             //4. XA is active
72.             this.xaActive = true;
73.         }
74.         currentAutoCommitStatus = autoCommit;
75.     }
76.     ...
77. }
79. //The type Abstract connection proxy on XA mode.
80. public abstract class AbstractConnectionProxyXA implements Connection {
81.     public static final String SQLSTATE_XA_NOT_END = "SQLSTATE_XA_NOT_END";
82.     //原始连接
83.     protected Connection originalConnection;
84.     //XA包装过的连接
85.     protected XAConnection xaConnection;
86.     //XA事务资源
87.     protected XAResource xaResource;
88.     //基础数据库连接池资源
89.     protected BaseDataSourceResource resource;
90.     //分布式事务xid
91.     protected String xid;
92.
93.     public AbstractConnectionProxyXA(Connection originalConnection, XAConnection xaConnection, BaseDataSourceResource resource, String xid) {
94.         this.originalConnection = originalConnection;
95.         this.xaConnection = xaConnection;
96.         this.resource = resource;
97.         this.xid = xid;
98.     }
99.     ...
100. }

复制代码



来源：程序园用户自行投稿发布，如果侵权，请联系站长删除
免责声明：如果侵犯了您的权益，请联系站长，我们会及时删除侵权内容，谢谢合作！
